Your RAM might be running in single-channel mode — here's how to check in 10 seconds

You may assume that once your computer shows the correct memory capacity and applications run normally without any warnings, there is no problem. With RAM, people think it either works or doesn't.

However, I came across the memory channel mode setting, and it gave me a new perspective. In reality, your computer may run your RAM in single-channel mode even if it recognizes all of it. You may have a severe data throughput bottleneck without knowing. It only takes about ten seconds to verify.

Your PC won't warn you

Single Channel mode hides in plain sight

The reason why this setting is overlooked is that there are rarely any clues that something is wrong. For example, Windows will still show 16GB of installed RAM if your system has 16GB of RAM. In most cases, daily tasks will feel normal. It's very unlike failing drive or overheating processor issues, where you see error messages. With Single Channel mode, there are none.

Here is the problem: several laptops have just one populated RAM slot, and it's the same for some prebuilt desktops. You may add a second RAM stick without knowing that there are specific slot pairings recommended by the manufacturer. This can cause the system to run in single-channel mode.

It's important to note that single-channel mode isn't inherently bad. It's mainly just a question of whether the device is operating in the configuration you expected when the upgrade was done or when the device was purchased.

CPU-Z reveals the answer

The fastest way to check

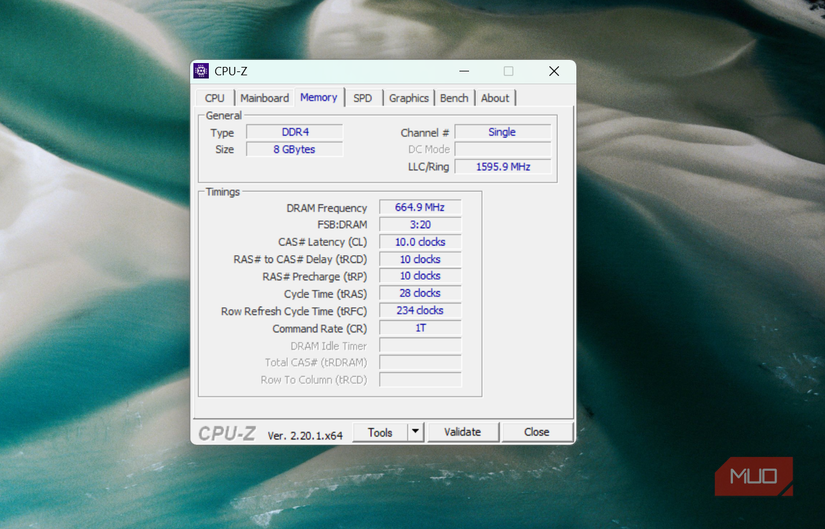

The quickest way to determine if your device runs in single-channel or dual-channel mode is by using the CPU-Z tool.

Install and launch the tool, then click its Memory tab. The Channel # field instantly displays the results.

If CPU-Z shows "Single" but you have two RAM sticks installed, the issue is almost certainly slot placement, not faulty hardware.

That's all you have to do. It doesn't require entering the BIOS or physical inspection of the RAM placement.

This is also a reason why you should not solely rely on what Windows shows you. Even if you installed RAM in both slots, it doesn't tell you exactly how your memory is operating. Downloading and installing CPU-Z actually takes longer than the actual check.

Performance impact varies by PC

The performance impact depends on what you do

Bandwidth is the main reason why your memory channels matter. Having an extra channel is like having a second lane on a highway. While the amount of data that is being moved may remain constant, there are wider paths for that data to flow through.

This doesn't imply an immediate, dramatic performance boost for every workflow. In fact, you probably would not see the difference if you spent the majority of your time browsing the web, checking email, streaming videos, or working on office applications. None of these tasks is generally limited by memory bandwidth. But there are certain workloads that benefit from it.

This is especially relevant for AMD Ryzen-based laptops and desktops, where integrated Radeon graphics are particularly sensitive to memory bandwidth.

The biggest exception is seen with integrated graphics, because integrated GPUs use system memory as video memory. Integrated GPUs benefit from increased bandwidth, which can improve graphics performance. That's why you notice that on laptops or budget desktops relying on integrated graphics, channel configuration seems to matter more.

The goal is not to assume single-channel mode is slow; you must first consider if your hardware is delivering the performance it's truly capable of.

Here's how it happens

Why so many systems end up in single-channel mode

My first question after checking my configuration was: How does this happen?

Well, what you must understand is that manufacturers often leave an empty slot to provide an easy upgrade path. This way, if your requirements for the computer increase, you can make the hardware match the new needs. This is a sensible design choice, but it also explains the problem.

With laptops, it may even get a bit more complex, especially with models that come with soldered memory that can't be replaced. On some units, there is a combination of soldered and removable memory modules, which further adds complexity and makes users end up with configurations that do not behave as expected.

However, you can benefit from this memory mode check without understanding every memory architecture. The check only tells you whether the system currently operates in single-channel or dual-channel mode. After that, you can decide on your next step of action.​​​​​​​

What to do next

There is no need for further action if your computer is running in dual-channel mode — it's the option you hope for. However, you also don't need to rush out and get new RAM if your system is running in single-channel mode.

You should first check how your memory is configured. Ensure that both RAM modules are properly seated in the recommended spot on your motherboard. You typically find this information in the manual. Often, simply moving a stick to a different slot enables dual-channel operation. And for systems with only one installed RAM module, adding a compatible second module, if an empty slot is available, can fix it.

This is a valuable PC check that you can do in under 10 seconds, which could reveal if you are getting the best out of your computer.
