I replaced liquid metal with a thermal pad and my laptop finally stopped throttling

Laptop cooling, especially for gaming laptops, is crucial. You’re usually averaging around the high 80s to 90s at full throttle, so you’ll want all the help you can get.

Thermal paste just isn’t good enough here, which is why many manufacturers have opted to switch over to liquid metal. As the name implies, it’s a high-performance alternative to standard thermal paste solutions and uses metal alloys that remain liquid at relatively modest temperatures.

Liquid metal is incredibly conductive, though, and is a pain to apply correctly. Enter PTM7950, a promising “new” alternative that has all the advantages and none of the drawbacks.

I recently bought a small pad of it myself, and the difference was quite stunning.

Applying PTM7950 to the laptop and GPU

A simple but very powerful upgrade

I mostly work on a thin, light laptop, and in this case, the Asus Zenbook 14 UX3405 proved very capable — until I started hitting thermal walls, that is.

The laptop would manage to get very, very warm to the touch, and I wasn’t exactly comfortable keeping it running this hot. A change in thermal paste was overdue, and I happened to come across a very intriguing alternative on Amazon.

Advertised as a “phase change” thermal pad, PTM7950 was available for a lot less than I remember it being a few years back. Yes, PTM7950 isn’t exactly a new concept — it’s been here for quite some time, and its adoption has spread in the past few years.

Still, it’s not all that common, and a lot of people don’t know about this miraculous material.

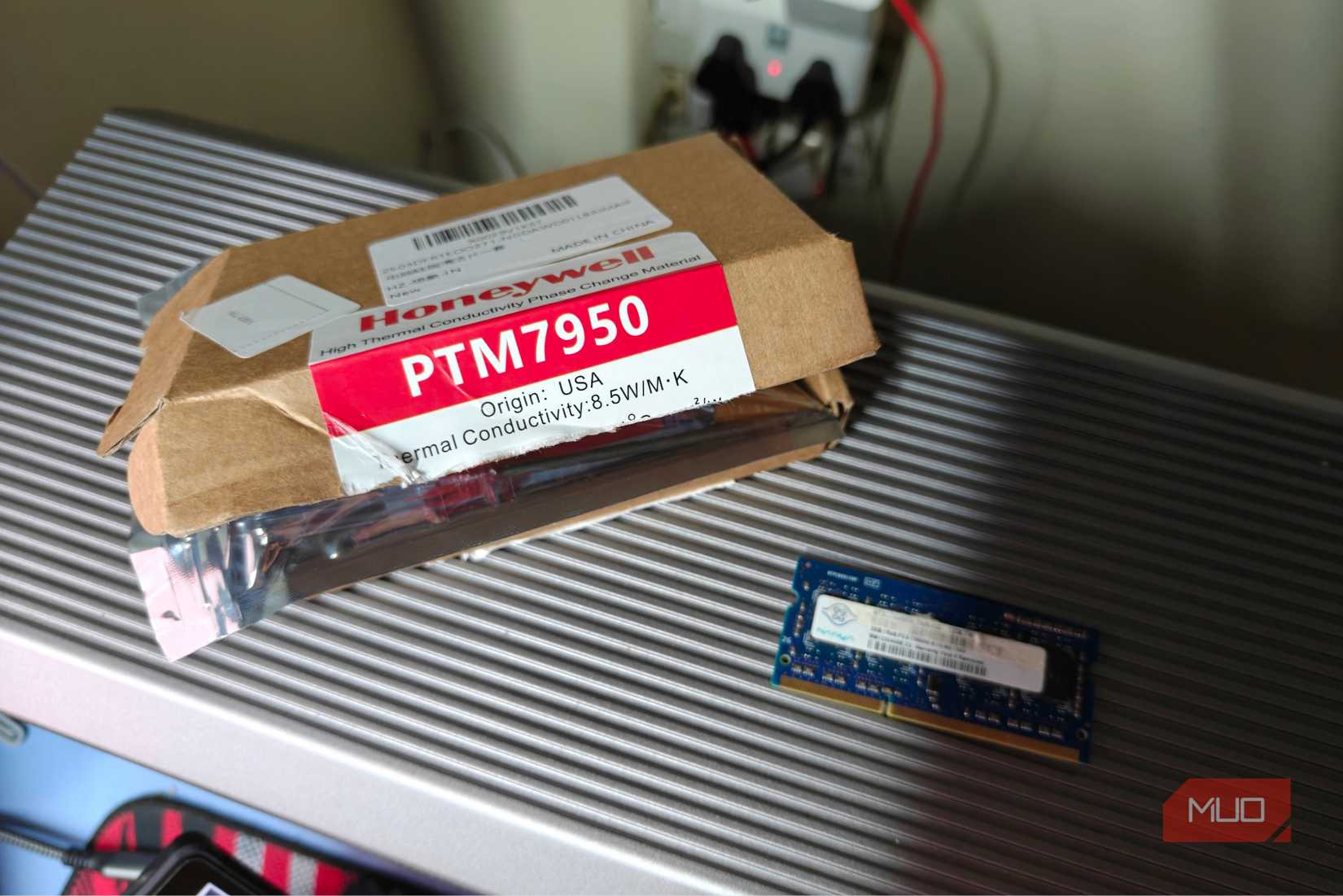

As I eagerly waited for it to arrive, I turned my attention to my eGPU, which now housed an RTX 4070. The enclosure does get hot rather quickly, and now was as good a time as any to repaste the GPU. After unboxing the thermal pad, I was pretty surprised at its puny size. It’s certainly not super pricey, but it costs a fair bit more than regular thermal paste, while offering far less quantity.

Regardless, I put it in the refrigerator (at a very reasonable 4 degrees Celsius) to let it harden up a bit. You heard that right — PTM7950 is a phase-change material that remains solid up to 45 degrees, after which it begins to melt into a very viscous, thermally conductive liquid.

This phase change lets it transfer heat much more efficiently, doing exactly what liquid metal does, but with none of the risks. The pad is pretty thin too — and it's surprising enough. You don’t need to make layers.

Applying PTM7950 was super easy; all I had to do was cut out a portion about the same size as my CPU and GPU dies. After getting rid of that old, crusty thermal paste, I simply placed the pads on each die and screwed in the heat sink.

I did make sure to spread it around with the included plastic spatula for a bit, just to level the surface and release any air bubbles along the way.

One reboot later, and it was time to stress test the two pieces of kit together. I began by compiling the Linux kernel on the laptop, which it managed to complete without throttling as quickly. Even more so, the laptop felt much cooler than it did before, during regular use.

The 4070 also saw a marginal improvement, and the fans kicked in much less often than before. So far, I would say I’m rather pleased at how simple and effective the whole upgrade process was. PTM7950 needs a few heat cycles to properly settle in, and I'm sure the improvements will be a bit more substantial in the long run.

Liquid metal can be deadly if applied incorrectly

Thermal pads are a far safer option

I can’t say the same for liquid metal, though. I’ve had a PS5 die from spillage (probably since I kept it in a vertical position — but I digress, they should never have had this to begin with), and I’m always worried about the long-term effects.

Liquid metal is conductive and reactive. If it manages to seep out of the die and into the circuitry, it’s going to short things out, and things could end in catastrophe.

Not to mention, there have always been reports of Liquid Metal eating through the heat sinks over time. In short, it's not a very good solution for the long term.

PTM7950 is the go-to solution here, which is largely thanks to it being non-conductive. Even if it spilled over, it would do no harm. Liquid metal is also much more expensive and a real pain to apply, which makes it even worse.

One small miscalculation and it's all over. You’ll also have to coat the die with tape or foam to prevent it from spreading out, which it will eventually.

Not going back to regular thermal paste now

After seeing the benefits firsthand, I don’t think I’m ready to switch over to regular thermal paste for my daily drivers anytime soon. I still have a bit of the thermal pad left over, and I plan to add it to my handheld gaming PC one day.

Of course, thermal paste is still a lot cheaper and easier to get your hands on. It’s also perfectly fine for most use cases — PTM7950 is just for those who need that extra edge.
